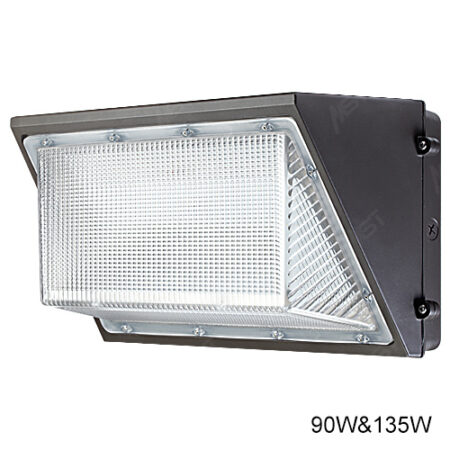

LED Traditional Wall Pack 90W-135W

Product Highlights
  • 3,300 to 16,400 Lumens / 4000K, 5000K

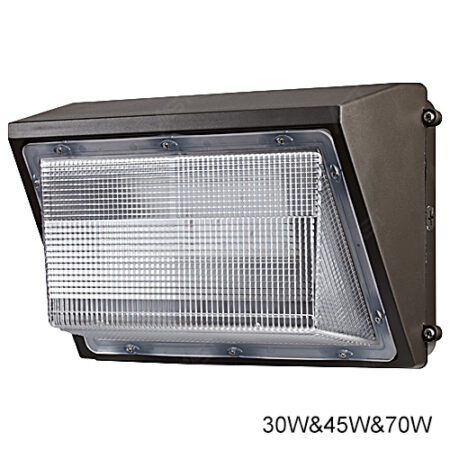

  • 30W, 45W, 70W, 90W, 135W / Replaced up to 400W Metal Halide
  • Suitable for Wet Locations, 5 Year Limited Warranty

$144.75$174.15

Buy Now Compare
Availability: In Stock
SKU:NAC-MWP01

Description

Cast in a traditional design, the wall packs offer a popular, classic appearance with energy-efficient LED technology. These LED wall packs were designed to look exactly the same as traditional HID wall packs, so you can easily upgrade without leaving behind any unsightly discoloration from the old fixture.

Ideal for outdoor applications such as security, building entryways and walkway

Product Highlights

● Sealed die-casting profile for indoor and outdoor applications.
● Voltage is 120-277V, 1-10V dimmable.
● Lumen ouput from 3300-15100lm with efficacy up to 113lm/W.
● Polycarbonate optical lens with UV stabilizers
● Photocell and Motion Sensor optional and supports Emergency Battery
● Replacing 100W MH and 400W MH.
● Operating temperature is -40°C to 40°C(-40°F to 104°F).
● UL/cUL wet location.



Housing

■ Rugged die-cast aluminum, corrosion-resistant housing
■ Dark bronze polyester powder-coat finish

LEDs

■ LM-80 certified high performance and reliable LEDs

Electrical

■ Universal 120-277/347/480 VAC input voltage

Mounting

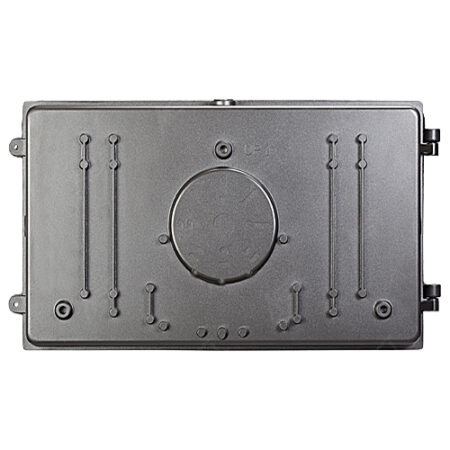

■ Junction box or wall mount

UL listing

■ Wet location

Recommended Use

■ Pathway
■ Building entryways
■ Perimeter lighting

Additional information

Weight 12 lbs
Dimensions 12 × 12 × 12 in
Color Temperature

5000K

CRI

70

Efficacy

109lm/W – 113lm/W

Input Current

720mA – 3500mA

Operating Temperature

-40°F to 104°F

Lumen Output

3400lm, 5300lm, 8100lm, 11200lm, 16400lm

Rated Lifetime

50,000 Hours

Voltage

120-277V

Warranty

5-Year Limited Warranty

Wattage

90W, 135W

Color / Finish

Black, Dark Bronze, White

Photocell Daylight Sensor

Optional

Occupancy Motion Sensor

Optional

Size

Large, Medium

Replacement Equivalence

100W Metal Halide, 175W Metal Halide, 250W Metal Halide, 320W Metal Halide, 400W Metal Halide

Suitable for Wet Locations

Yes

Dimensions (Each - LxDxH - in)

14.21 x 9.25 x 7.2 in, 18 x 9.75 x 8.72 in

Documents
Installation Guide
Sell Sheet
IES File
Certifications
