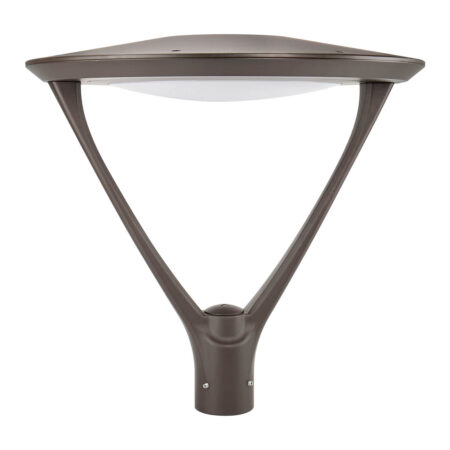

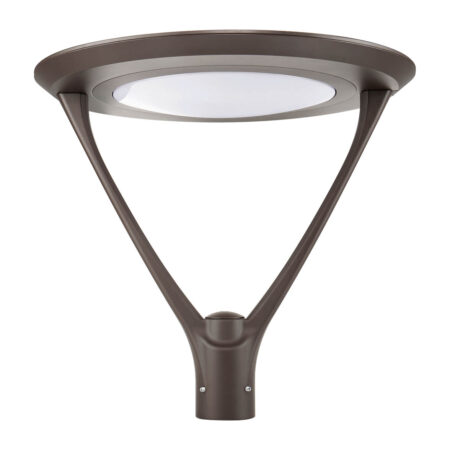

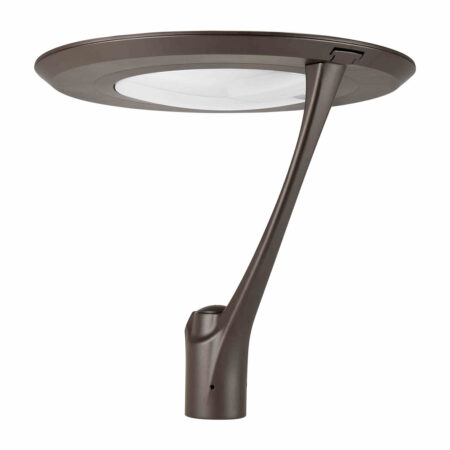

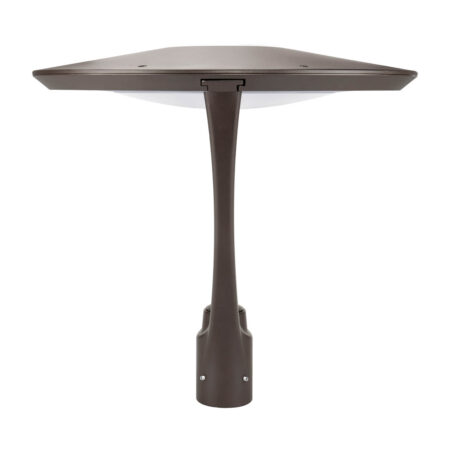

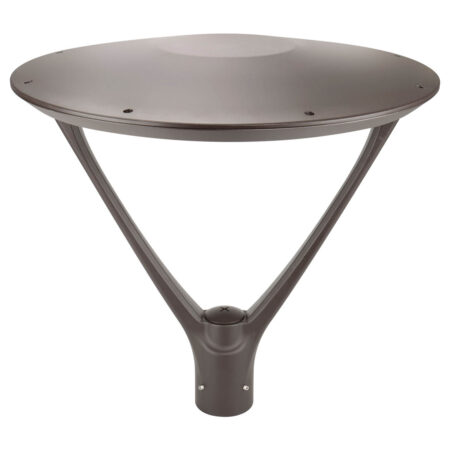

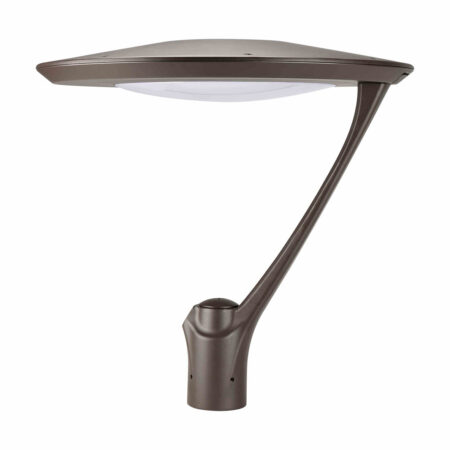

LED Post Top Light 45W-70W-87W-130W
Product Highlights
- Ideal for 8′ – 20′ Mounting Height
- Efficacy >120 lm/W, Zero Uplight, Consuming 45W – 130W
- Rated UL Wet location, & DLC Premium Qualified
$412.50 – $454.50
Buy Now <span class="ts-tooltip button-tooltip">Compare</span>Description
The post top provides a unique, scalable lighting solution targeted for 8’ to 20’ mounting heights. Its design brings proportion to parking lots, drive lanes, entrances, building perimeters and pathways. The excellent optical design that deliver the smooth light with a very good uniformity. The structure is clean and more popular, promotes harmony between the outdoor lighting and architecture.
Product Highlights
● Show off urban style by the simple shape and the heavy material.
● Efficacy higher than 120 lm/W with zero uplight while consumes 45W, 70W, 87W, 130W.
● Symmetry foot appearance conveys environmental harmony.
● Install on poles which top diameter limited to 2 3/8″ or 3″.
● Suitable for installation heights of 8-20 feet.
● 1-10V dimming and projected over 50,000 hrs life span.
● Operating temperature is -40℃ to 45℃(-40℉ to 113℉).
Housing
■ Dark bronze polyester powder-coat finish LEDs
■ LM-80 certified high performance and reliable LEDs
Electrical
■ Universal 120-277 VAC or 347-480 VAC input voltage
■ Standard with 1-10V dimming
Mounting
■ Poles or wall sconce UL listing
■ Wet location
Recommended Use
■ Building perimeters
■ Pathway
■ Green area
Additional information
Weight | 25 lbs |
---|---|
Dimensions | 32 × 16 × 16 in |
Color Temperature | 5000K |
CRI | 70 |
Dimmable | 0-10V |
DLC Product Listing | DLC Premium Qualified |
Efficacy | 120 lm/W, 121lm/W, 122lm/W, 123lm/W |
Input Current | 10400mA, 10500mA, 15800mA, 45800mA, 5400mA, 5450mA, 5500mA, 8400mA, 8450mA, 8500mA, 8600mA, 8700mA |
Operating Temperature | -40°F to 113°F |
Lumen Output | 14200lm, 14800lm, 21200lm, 22200lm, 28000lm, 34000lm, 35500lm, 42500lm, 43700lm, 50000lm, 51000lm |
Rated Lifetime | 100,000 Expected |
Voltage | 120-277V |
Warranty | 5-Year Limited Warranty |
Wattage | 45W, 70W, 87W, 130W |
Replacement Equivalence | 100W Metal Halide, 175W Metal Halide, 250W Metal Halide, 400W Metal Halide |
Photocell Daylight Sensor | Optional |
Occupancy Motion Sensor | Optional |
Color / Finish | Black, Dark Bronze, White |
Suitable for Wet Locations | Yes |
Dimensions (Each - LxDxH - in) | 24.3 x Ø25.2 in |
